Waste segregation is a major challenge in maintaining environmental cleanliness and effective recycling. Manual segregation is time-consuming, unhygienic, and inefficient.
The Waste Separation Robot automates this process using sensors and a microcontroller to classify waste based on material properties. The robot then moves or uses a robotic arm to place waste into designated bins.
Key Features :
- Automatic waste identification
- Separation into multiple categories
- Reduces human contact with waste
- Environment-friendly and scalable design
( This project demonstrates the practical application of robotics and sensor technology in smart cities and waste management systems. )

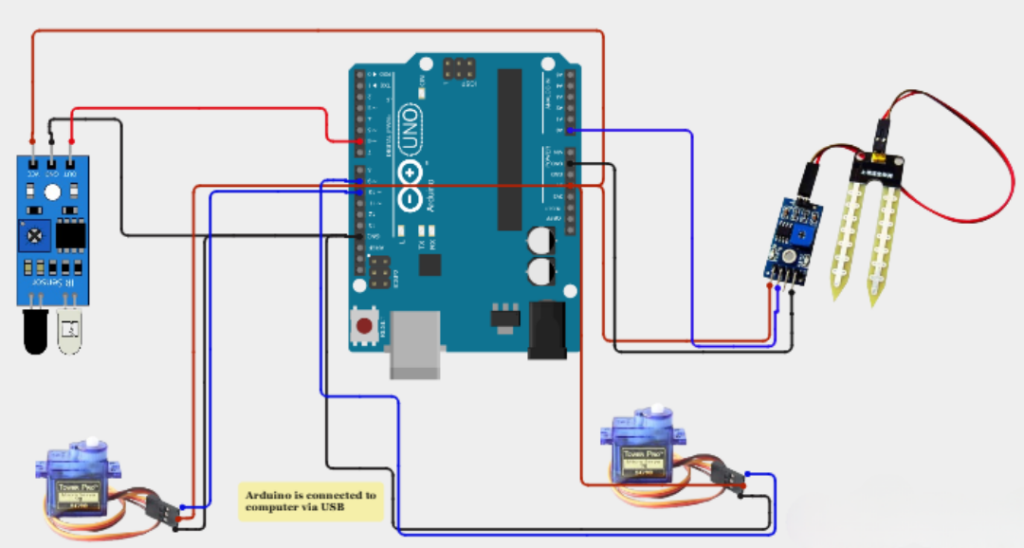

CIRCUIT DIAGRAM
Connection Description (Wiring Map)
Main Components :
- Microcontroller: Arduino Uno / Mega
- IR Sensor: Detects object presence
- Moisture Sensor: Identifies wet waste
- Servo Motors: Controls waste-diverting mechanism
- Conveyor : Moves waste
- Power Supply: 5V and 12V regulated supply
Wiring Summary :
Component | Arduino Pin | Description |
IR Sensor | D2 | Object detection |
Moisture Sensor | A0 | Wet waste detection |
Servo Motor 1 | D9 | Bin selector |
Servo Motor 2 | D10 | Conveyor / gate control |
Power Supply | Vin / GND | System power |
Working Principle :
- Waste is placed on the conveyor or input area.
- IR sensor detects the presence of waste.
- If not metal, moisture sensor checks wet or dry condition.
- Based on detection:
- Wet waste → Wet bin
- Dry waste → Dry bin
- Wet waste → Wet bin
- Servo motors rotate the diverter or robotic arm to drop waste into the correct bin.
Testing the Hardware :
- IR Sensor Test
- Place an object to verify detection.
- Place an object to verify detection.
- Moisture Sensor Test
- Touch wet and dry materials to observe readings.
- Touch wet and dry materials to observe readings.
- Servo Motor Test
- Check angle movement for bin selection.
- Check angle movement for bin selection.
- Full System Test
- Place different waste items and verify correct segregation.
- Place different waste items and verify correct segregation.
Applications :
- Smart waste management systems
- Recycling plants
- Public dustbins
- Educational robotics projects
- Smart city initiatives
Troubleshooting :
Problem | Possible Cause | Solution |
Waste not detected | IR sensor misalignment | Adjust sensor position |
Wrong waste classification | Sensor threshold issue | Calibrate sensors |
Servo not rotating | Power issue | Use external power |
Conveyor not moving | Motor driver fault | Check wiring |
System resets | Voltage drop | Separate motor power |

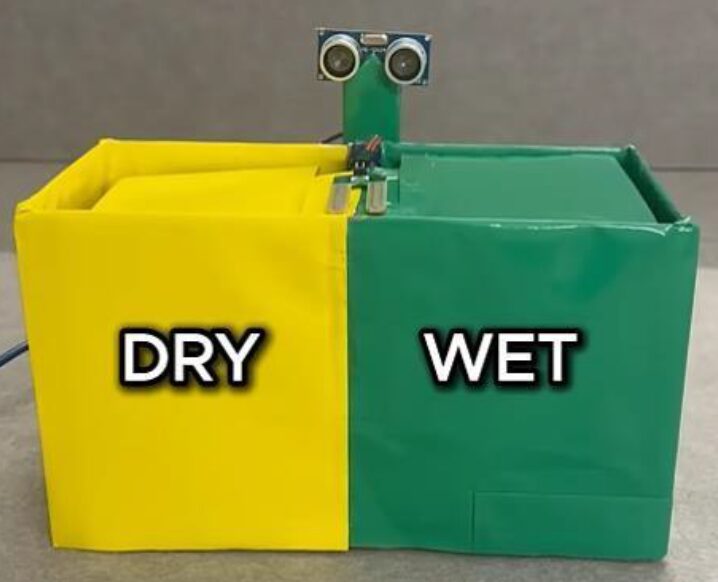

( The Waste Separation Robot is an automated robotic system designed to identify and separate different types of waste such as dry waste, wet waste. Using sensors and a robotic mechanism, the system detects the type of waste and places it into the appropriate bin. This project helps in reducing human effort, improving recycling efficiency, and promoting smart waste management. )
