Animal Detection Using YOLO

Animal intrusion into farms, highways, and residential areas can cause accidents, crop damage, and safety risks. Traditional monitoring systems require human supervision, which is inefficient and time-consuming.

YOLO (You Only Look Once) is a powerful deep learning object detection algorithm that can detect objects in real-time with high accuracy. It processes an image in a single pass through a neural network, making it extremely fast compared to older methods like R-CNN.

In this project:

  • A camera captures real-time images.
  • YOLO model processes the image.
  • If an animal (dog, cow, elephant, etc.) is detected:
    • Alert is triggered (LED/Buzzer).
    • Optional Notification is sent.
    • Image can be stored for record.
whatsapp image 2026 01 31 at 4.55.04 pm
whatsapp image 2026 02 26 at 12.43.37 pm

What is YOLO?

YOLO (You Only Look Once) is a fast and accurate object detection algorithm that :

  • Detects objects in real-time

  • Identifies multiple objects simultaneously

  • Provides bounding boxes and class labels

  • Works efficiently on GPUs and even edge devices

whatsapp image 2026 01 31 at 4.54.46 pm

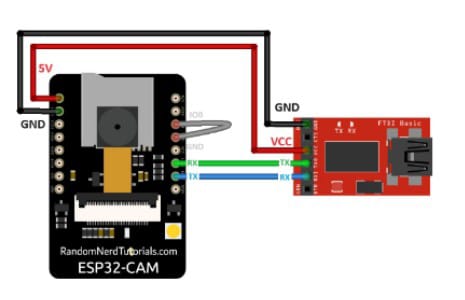

CIRCUIT DIAGRAM

Applications :

  • Farm crop protection

  • Forest wildlife monitoring

  • Smart highway animal alert system

  • Zoo surveillance

  • Border security

  • Smart villages

Components Required :

  • ESP32-CAM / USB Camera



  • Raspberry Pi / Laptop / PC (for running YOLO)



  • Buzzer



  • LED



  • 220Ω Resistor



  • Jumper wires



  • Power supply (5V)



  • Internet (optional for alerts)

Connection Description (Wiring Map)

Using ESP32-CAM + Laptop (Recommended for Beginners) :

ESP32-CAM Pin

Connection

5V

5V Power Supply

GND

GND

U0R

FTDI TX

U0T

FTDI RX

GPIO 4

LED (+)

GPIO 12

Buzzer (+)

GND

LED (-), Buzzer (-)

Testing the Hardware

Step 1: Power ON
  • Ensure the ESP32-CAM or Raspberry Pi is powered properly.
  • Check the camera LED indicator.
Step 2: Run Python Program
  • Open a terminal.
  • Execute detection script.
  • The webcam preview window should open.
Step 3: Test with Images
  • Show animal images from a mobile.
  • Observe the bounding box around the detected animal.
  • LED/Buzzer should activate (if programmed).
Step 4: Outdoor Testing
  • Place the system near the farm area.
  • Check detection range (5–15 meters recommended).

Working Principle

  1. Camera captures live video frames.

  2. Frames are passed to YOLO model.

  3. Model detects animals using pre-trained weights (e.g., YOLOv5/YOLOv8).

  4. Bounding boxes and labels appear on detected animals.

  5. If detection confidence > threshold (e.g., 70%),

    • LED turns ON

    • Buzzer activates

    • Alert message is sent

Troubleshooting :

Issue

Cause

Solution

Slow detection

No GPU

Use lighter YOLO model

Wrong classification

Low lighting

Improve lighting

No detection

Model not loaded

Check file path

False positives

Threshold low

Increase confidence value

Camera not working

Driver issue

Check camera connection

( Animal Detection Using YOLO is a computer vision-based system designed to identify and classify animals in real-time using deep learning. The system uses a camera module to capture live video, which is processed by a microcomputer or PC running the YOLO (You Only Look Once) object detection algorithm. When an animal is detected, the system can trigger alerts such as buzzer sound, LED indication, Email notification, or data logging.This project is useful for wildlife monitoring, farm protection, forest border surveillance, and smart agriculture applications. )
